Master BV290DV Marquee Kit With 3 Meter Ducting, Digital Thermostat & Accessories BV290MKP7D

85 kw | 290,000 BTU | Digital Thermostat | 3 Metre Ducting & Accessories | Diesel Oil or HVO 100 BioFuel

Order Code:
 BV290MKP7D
Products included in Kits Qty
1
1
1
1
1
1
1

Call For Availability

NEW Marquee Kits:

Marquee Kits as they are known in the trade are not just used for heating Event Marquees but are also used extensively where there is limited or poor ventilation such as Warehousing, Workshops and Portable Accommodation to name but a few.

The heater is placed outside of the enclosed area and using the accessories supplied with each kit ducting is used to direct the heat to where it is needed without the risk of being affected by the exhaust fumes.

Indirect heaters are highly efficient and provide 100% clean, dry and fume free air.

The Master range of indirect heaters range from 20kW or 116,000 Btu to 225kW or 768,000 Btu and are available in 110, 240 Volt or Dual voltage dependent on the model.

Complemented by a full range of accessories including analogue and digital thermostats, ducting kits and exhausts there is a package for most indirect heating requirements.

Depending on the space you are looking to heat will depend on the size of your heater.

Please Note: We have many variations of Marquee Kits and can create a bespoke kit upon request. simply provide us with the dimensions of the area you are looking to heat along with the makeup of the structure of the building.

This Marquee Heater Kit comprises of the following accessories:

1 x BV290DV Indirect Dual Voltage Diesel Heater.

1 x Digital 5 Metre Wired Thermostat for setting the room temperature.

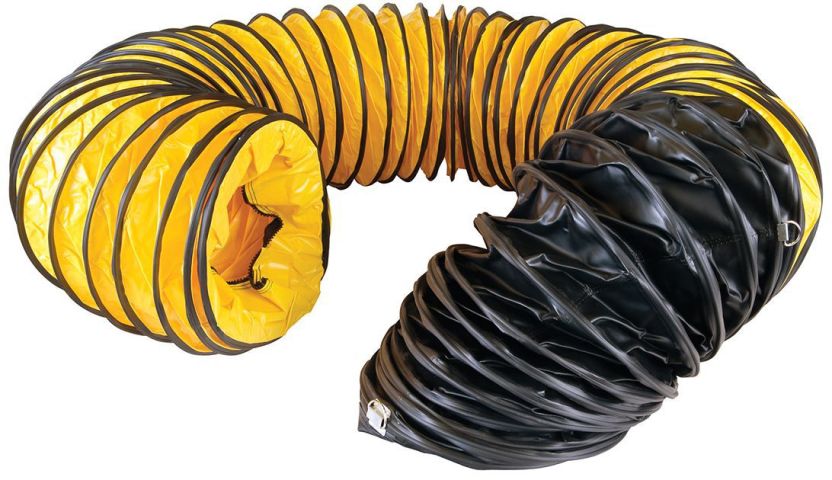

1 x 3 Metre Flexi Ducting for directing the warm air in the direction required.

1 x Nylon Diffuser which fits on the end of the ducting to stop small children or animals from crawling inside.

1 x Adaptor Ring for connecting the ducting to the heater.

1 x 1 Metre Stainless Steel Exhaust Pipe for ventilating fumes away from the heater

1 x Stainless Steel Exhaust Rain Lid to stop rain or anything entering the Exhaust Pipe.

For full specifications of the Indirect Heater supplied in this Marquee Kit please click on the specifications tab below.

If you require any further technical advice regarding the right heater for the right job do not hesitate to contact any member of our sales team.

Products included in Kits Qty
1
1
1
1
1
1
1
Fuel Type : Diesel Oil or HVO 100 BioFuel
Voltage : Dual Voltage 110 or 240 Volt
Heating Power (Kw) : 85 Kw
Heating Power (Btu) : 290,000 Btu
Heating Power (Kcal) : 73,100 Kcal
Thermostat Control : Analog (Optional Extra)
Thermostat Control : Digital (Included)
Air Displacement : 3,300 M3/h
Air Pressure : 12 Bar
Fan Type : Axial
Power : 1060 Watts
Rated Current : 4.6 Amp
Fuel Tank Capacity : 105 Litres
Fuel Consumption : 8.1 Litres Per Hour
IP Rating : IP44
Air Outlet Diameter (Single) : 1 x 40cm (Standard)
Air Outlet Diameter (2 Way) : 2 x 31cm Splitter (Optional Extra)
Air Outlet Diameter (4 Way) : Not Available
Ducting Diameter (Single) : 45cm (Standard)
Ducting Diameter (2 Way) : 31cm 2 Way Splitter
Ducting Diameter (4 Way) : Not Available
Ducting : Optional Extra
Exhaust Tube Diametre : 15cm
Exhaust x 1 Metre : Optional Extra
Exhaust Rain Lid : Optional Extra
Length : 160cm
Width : 70cm
Height : 115cm
Forklift Slots : Not Available
Trolley Wheel Kit : Included
Noise Level : 78 db(A)
Weight : 101kg
