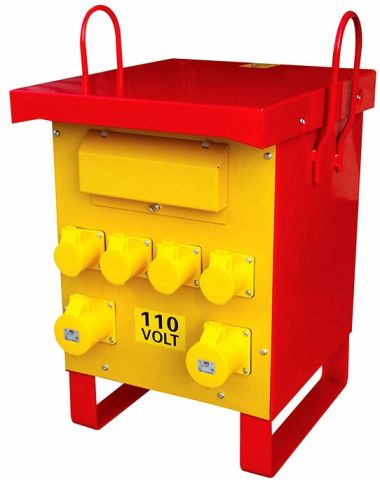

10kva Three Phase Site Transformer T10KVA3P
4 x 16 Amp Outlets & 2 x 32 Amp Outlets
Order Code:
T10KVA3P
The range of transformers are typically used to convert 240 volt to 110 volt which is predominately used on building and construction sites but other options are also available.
From 1.5 Kva to 10 Kva the size of transformer required will be determined by the wattage of the devices and how many being used. Power Tool rated, Continuous rated, Step Up, Metal Vented and Single Phase Transformers are all included in the range.
If you require any further technical advice regarding this product please do not hesitate to contact any member of our sales team.
Downloads
Default Category
-
T10KVA3P Parts Drawing Size: (117.63 KB)
Specification Sheets
-
T10KVA3P Specification Sheet Size: (208.96 KB)
| Kva Rating : | 10 Kva |
| Power Rating : | 3 Phase |
| Power Rating : | Continuous |
| Input Voltage : | 400 Volt |
| Input Plug : | Not Supplied |
| Output Voltage : | 110 Volt |
| Output Sockets 16 Amp : | 4 x 16 Amp |
| Output Sockets 32 Amp : | 2 x 32 Amp |
| MCB Protection : | Included |
| Power Cable Length : | Not Applicable |
| Power Cable Diameter : | Not Applicable |
| Height : | 69cm |
| Width : | 57cm |
| Length : | 53cm |
| IP Rating : | IP44 |
| Handle : | Included |
| Weight : | 75kg |
